Package size: 470mm*240mm*130mm
Frame weight: 364g include (AIO Plate, Motor, Propeller, GPS, Antenna)
Weight(With box):1228g
Flight controller
Naze32 Rev6 Full function 32bit
CPU: STM32F103CBT6
Frequency: 72M
Accelerometer: MPU6500
Barometer: MS5611
Magnetometer: HMC5983

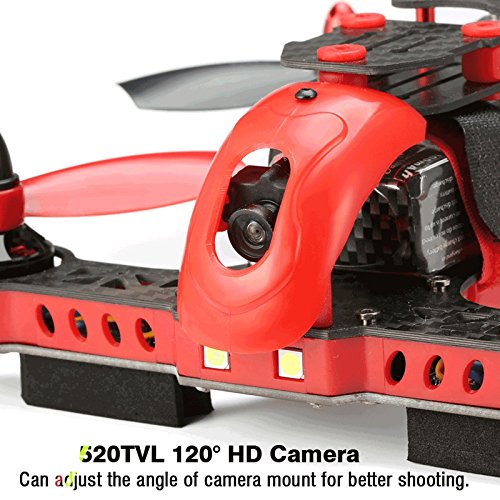

FPV Camera
Resolution: 520TVL HD
Video format: NTSC or PAL Switchable
Effective pixel: 720(H)x480(V)
Sensor: 1/4 inch HD Colour CMOS
Lens angle: H: 120 degree/V: 100 degree
Working voltage: 5V
Working current: 80mA
Weight: 4g
Battery
Capacity(mAh):1300
Cells (s): 3S
Discharge (c): 25
Weight (g): 111
Max Charge Rate (C): 2
Length(mm): 80
Width(mm): 30
Height(mm): 24
Support 3-4S battery
ESC
Eachine B12A brushless esc
Continuous current: 12A
Burst current: 15A(10s)
Li-xx Battery: 2s-4s
Motor
Eachine B1806 2700KV
Configu-ration: 12N14P
Stator Diamter: 18mm
Stator Length: 6mm
Shaft Diameter: 2mm
Motor Dimension(Dia.*Len): Φ23*30.1mm
Weight(g): 20
Idle current(10)@10V(A): 0.35
No. of Cells(Li-po): 2-3S
Max Continuous Power(W)180S: 135
Internal Resistance: 118mΩ
Max Current(180S): 12A
Max.Effciency Current: (2-7A)>83%
FPV Transmitter
5.8G 40ch 400mw Video transmitter
Wireless Channel: 40CH
Modulation : Broadbands FM
Support Video Format: NTSC/PAL
Video input impedance : 75 Ohm
Audio input impedance: 10K Ohm
Output Signal: 23~24dBmOutput Power : 400mw(Max)
Working voltage: 5V
Working current: 500mAOperating
Antenna Connector: RP SMA
Output Signal: 23~24dBmOutput Power : 400mw(Max)
Working voltage: 5V
Working current: 500mAOperating
Antenna Connector: RP SMA

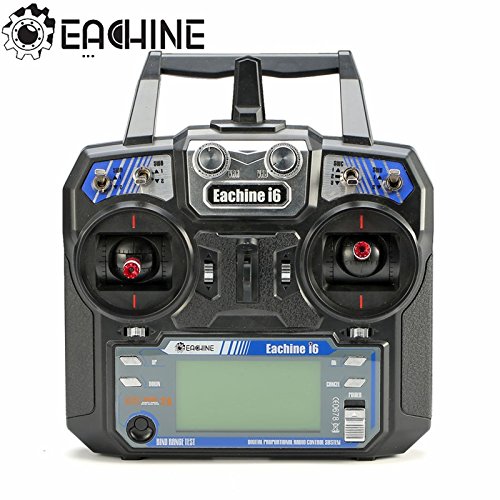

Eachine I6 2.4G Transmitter
Channels: 6 Channels
RF Range: 2.40-2.48GHz
bandswidth: 500KHz
bands: 142
RF Power: Less Than 20dBm
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output: PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Weight: 392g
Power: 6V 1.5AA*4
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
Size: 174x89x190mm
On-line update: yes
Model Memories: 20
Eachine I6 2.4G 6 channel Receiver
Channels: 6 Channels
RF Range: 2.40-2.48GHz
bandswidth: 500KHz
bands: 142
RF power:less than 20dBm
RF.receiver sensitivity:-105dBm
ANT length: 26mm
Weight:6.4g
Power:4.0-6.5V
Size: 40.4x21.1x7.35mm
i-BUS port: NO
Data Acquisition port: NO
