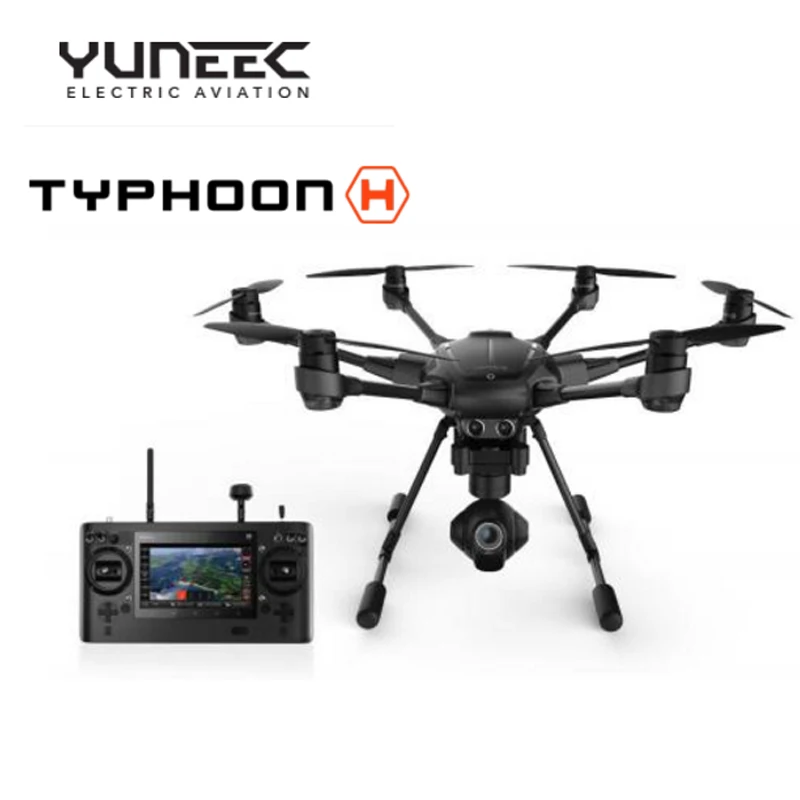

Typhoon H 4k

Yuneec Typhoon H Pro with Intel RealSense Technology - Ultra High Definition 4K Collision Avoidance Hexacopter Drone with 2

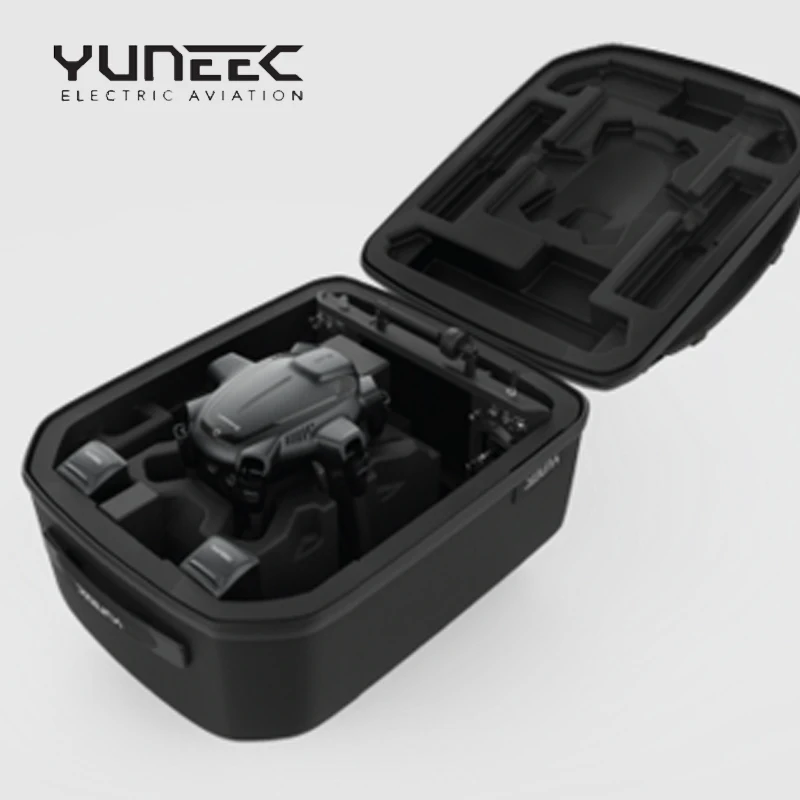

Batteries, ST16 Controller, Soft Backpack and Wizard

Package Contains:

Aircraft Body

CGO3+ 4K camera

ST16 Ground Station

2 Sets of Propellers

1 LiPo Battery

Battery Charger

AC Power Supply

AC Power Cord

12V Power Adapter

Quick Start Guide

Full color packaging

Features:

Ultrasonic Proximity Detection
A front-facing ultrasonic proximity sensor takes the Typhoon H's autonomy to the next level. This sensor aids avoiding collisions with large obstacles

No Fly Zones
The No Fly Zone preset locks the Typhoon H's flight ceiling at 400' above ground level at the takeoff point. This feature helps ensure compliance with FAA sUAS operational guidelines. In addition, Geo-Fencing can be enabled to further restrict possible flight patterns, locking the hexacopter within a user-defined radius of the pilot

Automatic Return Home
With a good GPS signal, the Typhoon H can automatically fly back to its takeoff point under a number of conditions. These include low battery, loss of control signal, or at the press of a button

Point-of-Interest (POI)
Locks the hexacopter in a circular orbit pattern around the takeoff point. This mode is especially useful for creating a circular "tracking" shot with a bird's eye view. In this mode the camera can still be moved independently

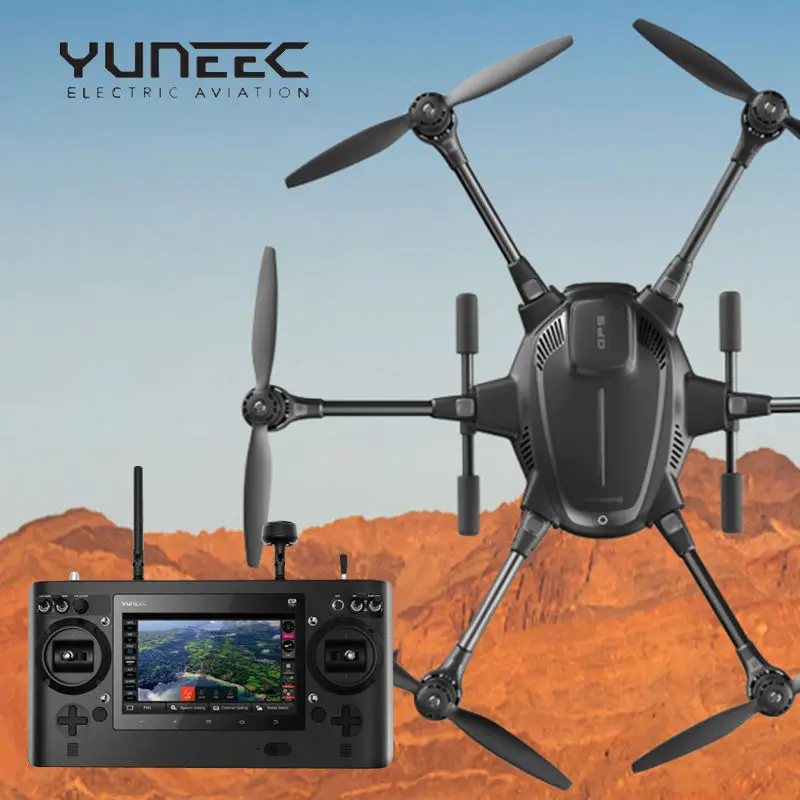

ST16 Personal Ground Station

Transmitter (handheld radio controller) and ground station system are combined into one device with the included 16-channel ST16. It features a 2.4 GHz transmitter for joystick operation of the quadcopter. In addition, there is a 5.8 GHz-range receiver for the video feed from the camera plus telemetry data. For ground station functions, it features a built-in Android device with 7" touchscreen

7" Built-In FPV Display
View a live feed on the ST16's 7", 720p resolution display. In addition, it can show telemetry data from the flight controller, such as altitude, GPS coordinates, and remaining battery life. Settings can be accessed via its touchscreen interface

Waypoint Navigation
Ground station functionality provided by the ST16 includes waypoint navigation. With this autopilot mode, apply pushpins to a map to create "waypoints" that define the Typhoon H's course. Altitude, speed, and heading can all change at each waypoint

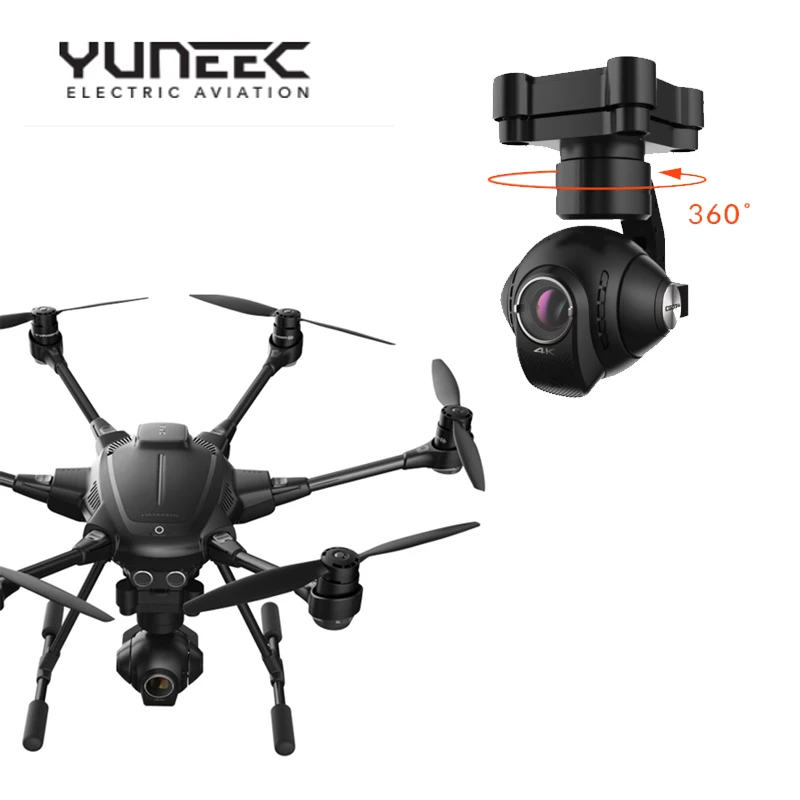

CGO3+ 4K Camera with 3-Axis Gimbal

The included CGO3+ combines a 12-megapixel, 4K camera and a 3-axis brushless gimbal into a single unit designed to capture stabilized aerial video and still images. For live view and remote operation, the camera features an integrated 5.8 GHz video downlink that enables operation and viewing from the 7" touchscreen on the ST16 Personal Ground Station. You can also pair with a mobile device using the free mobile app – available at Google Play and iTunes app stores

Airframe Design

One Motor Failure Survivability
A benefit of six rotors is that one can fail without stalling the aircraft. When the flight controller detects a motor failure, it adjusts its parameters to compensate. Maneuverability and performance will be greatly reduced; however, it gives you the chance to safely land the aircraft

Retractable Landing Gear
The landing gear retracts during flight to provide the camera an unobstructed 360° of shooting

Collapsible Design
The Typhoon H features quick-disconnect propellers for speedy breakdown. Additionally, each rotor arm folds down to a resting position against the drone for a more compact profile that is easier to transport

Carbon Fiber Parts
Carbon fiber components are used extensively to decrease weight and increase durability

Aircraft
Flight Time	Up to 25 min
Size	20.5x18x12.2 in (520x457x310mm)
Airframe Weight (with Battery)	59.8oz (1695g)
Take-off Weight	368.8oz (1950g )
Battery	4S 14.8V LiPo Battery (POWER 4)
Battery Capacity / Voltage	5400mAh 4S/14.8V（79.9Wh）
Charger	SC4000-4
Transmitter	ST16 Personal Station Ground
Maximum Flying Height	122m(400ft) agl (Restricted by FAA )
Maximum Rotation Rate	85 deg/s
Maximum Roll Angle	35°
Maximum Climbing Speed	5m/s
Maximum speed in follow me mode	43.5mph (70km/h)
Maximum Descending Speed	3m/s

Camera
Weight (with battery, without gimbal)	9.0oz (255g)
Effective Pixels	12.4 Megapixels
Camera lens	14mm/F2.8
FOV	98 Degree
Electronic Shutter	1/30s--------1/8000s
Video Transmission Range	Up to 1.6km/1 mile
Transmission System	5.2Ghz — 5.8Ghz
Video UHD	4K 30fps

Ground Station
Operating System	Android™
Number of Channels	16
Control Transmission Distance/Range (Optimum Conditions)	Up to 1.6km/1 mile
Video Link Resolution	HD 720p
Video Link Frequency Band	5.8GHz WiFi
Video Transmission Distance/Range (Optimum Conditions)	FCC Compliance: Up to 1.6km/1 mile CE Compliance: Up to 1.6km/1 mile
Flight Systems Telemetry Data On Screen Display (OSD)	Yes
LCD Screen Size	7”
Tactile (Vibrating) and Audible Feedback	Yes
Built-In Li-ion Battery Voltage / Capacity	3.6V 8700mAh 31.32Wh Li-ion
